You lock in your design, hit start on the control panel, and wait for that perfectly smooth, glass-like edge. Instead, you pull the finished piece from the honeycomb bed only to find jagged, micro-fractured, and severely chipped acrylic. For seasoned fabricators and weekend hobbyists alike, few things ruin a production run faster than destroying a pristine piece of material at the very last stage.
Because laser processing is fundamentally a non-contact operation relying on intense, focused light rather than a physical spinning blade, the chipping you see is rarely a mechanical break. It is usually the direct result of thermal stress, incorrect machine calibration, or hidden impurities within the polymer itself.
In this comprehensive engineering guide, we will break down the exact fluid dynamics and thermal reasons behind edge degradation. You will learn how to troubleshoot your CO2 laser settings, distinguish between manufacturing types, and understand why upgrading your raw materials is the ultimate preventative measure against cutting defects.
Material Science Dictates Results: The manufacturing process of your substrate heavily influences the final cut. Cast variants yield a clean, frosted-to-polished edge, whereas extruded types are highly prone to melting, gumming, and stress-cracking.
Thermal Shock is the Primary Enemy: What appears as a physical chip is almost always a thermal fracture caused by excessive air assist cooling the molten plastic too rapidly.
Precision Settings are Crucial: Incorrect power, speed, and frequency combinations create unstable, brittle edges that flake easily upon handling.
Quality Control Prevents Waste: Low-grade plastics contain chemical impurities and thickness variations. Upgrading to high-quality, thermally stable options minimizes defects and saves hours of production time.
To truly grasp why edge chipping occurs, we must look at how a CNC laser interacts with polymer materials on a microscopic level. Unlike a CNC router or a table saw, a CO2 laser does not cut using physical friction. Instead, it operates by directing a highly focused beam of infrared light at the material.
When this intense energy hits the surface, it rapidly heats the polymer past its melting point and directly into a gaseous state. This phase change is known as sublimation. The laser essentially vaporizes a microscopic line through the plastic, allowing the two pieces to separate effortlessly. When perfectly calibrated, the localized heat melts the immediate boundary of the cut. This creates a flawlessly smooth transparent acrylic sheet edge that looks naturally flame-polished.
Consequently, chipping in laser processing is widely misunderstood. Because no physical blade strikes the material, these chips are not impact craters. They are micro-fractures, thermal stress cracks known as crazing, or blowouts caused by expanding gases. When the material undergoes violent temperature fluctuations, heating to vaporization and cooling back to a solid in mere milliseconds, the molecular bonds can fracture. This results in that dreaded jagged appearance.
Before you even touch the control panel on your machine, you must verify the exact type of material sitting on your bed. Acrylic is manufactured in two primary ways, and they behave entirely differently when exposed to extreme infrared energy.
Extruded acrylic is produced by heating raw polymer pellets into a molten mass and forcing them through a series of heavy mechanical rollers to achieve the desired thickness. This continuous pushing and pulling process creates severe directional tension on a molecular level. When the intense heat of a laser hits extruded material, this locked-in molecular tension is violently released. The material tends to melt into a sticky resin rather than vaporizing cleanly. More importantly, the sudden release of tension makes the cut edge highly unstable and prone to delayed micro-cracking.
In contrast, cast acrylic is manufactured by pouring liquid monomer between two plates of highly polished glass, which is then allowed to cure slowly in a controlled oven. Because it is never pushed or pulled through rollers, it boasts a uniform, isotropic molecular structure with almost zero internal tension. Cast is the undisputed gold standard for laser processing. It requires slightly more power to cut, but the result is a beautiful edge highly resistant to thermal stress.
Feature | Cast Acrylic | Extruded Acrylic |
|---|---|---|
Manufacturing Process | Poured into glass molds, slow-cured | Pushed through mechanical rollers |
Internal Stress | Virtually zero tension | High directional tension |
Laser Edge Quality | Flame-polished, smooth, stable | Melted, sticky, prone to micro-fractures |
Best Application | Precision laser cutting, engraving | Thermoforming, basic routing |
If you are confident you are using the correct cast material but are still experiencing edge defects, the issue undoubtedly lies within your machine's calibration. From an engineering standpoint, maintaining a stable melt pool is everything. Here are the most common scientific reasons for edge failure.
Air assist is a standard feature on most CO2 lasers. It blows compressed air through the nozzle directly onto the focal point of the cut to clear away debris and extinguish flare-ups. However, for plastics, aggressive air assist is the leading culprit behind edge chipping.
When the laser vaporizes the plastic, the immediate kerf is lined with boiling liquid. If you blast high-pressure, room-temperature air onto this boiling liquid, it cools instantly. This rapid drop in temperature induces severe thermal shock. The edge solidifies too quickly, becoming highly brittle, and microscopic chips flake off immediately as the internal stresses attempt to equalize.
Achieving a glass-like finish requires maintaining a delicate thermal balance. If the laser moves too quickly at a lower power, the energy density is insufficient to melt the edge completely. The beam effectively stutters through the material, leaving a ridged, unstable edge that is prone to physical chipping when you pop the part out of the skeleton sheet. Conversely, moving too slowly with excessive power builds up surplus thermal energy. The surrounding material warps, boils, and creates hard crusty burrs that chip away during handling.
CO2 lasers do not emit a continuous stream of light; they pulse rapidly. This is measured in Pulses Per Inch or Hertz. If your frequency is set too low, the laser acts like a perforated sewing needle. It punches thousands of microscopic, overlapping holes rather than creating a fluid cut. The microscopic spaces between these pulses cool slightly before the next pulse hits, creating a serrated edge made entirely of tiny micro-chips.
A laser beam is shaped like an hourglass, converging at a specific focal point before expanding again. For a clean 90-degree cut, the narrowest part of the beam must be focused exactly on or slightly below the surface of the material. If the lens is out of focus, the beam hitting the plastic is wider and less concentrated. This creates a slanted V-shaped kerf. The bottom edge of this slanted cut becomes incredibly thin, fragile, and highly susceptible to breaking off.
Often, operators will find the top edge of their cut is perfectly smooth, but the bottom edge is heavily chipped, pitted, or frosted. This frustrating phenomenon is caused by flashback. When the beam cuts entirely through the plastic, the remaining energy hits the metal honeycomb grid supporting the material. The metal reflects the intense heat directly back up into the underside of the plastic, melting and chipping the bottom edge of the workpiece.
By systematically adjusting your machine based on fluid dynamics and thermal properties, you can eliminate edge defects entirely and elevate the quality of your output.
To guarantee a continuous melt, you must configure your settings thoughtfully. For standard 3mm thicknesses, utilize a relatively slow speed around 10mm to 15mm per second paired with high power around 70 to 85 percent capacity. Crucially, set your frequency to its maximum allowable setting. A high frequency ensures the laser pulses so rapidly that the material remains in a continuous molten state along the cut line, completely preventing the perforated micro-chipping effect.
To prevent thermal shock, you must restrict the cooling effect of your air assist. Turn the air pressure down to the absolute bare minimum. You only need a gentle flow of air, just enough to blow combustible vapor away from the lens to prevent soot buildup or thermal lens cracking. A pressure of 0.5 to 1.5 PSI is typically sufficient. By allowing the material to cool at its own natural rate, the molecular structure stabilizes without fracturing.
To eliminate flashback and bottom-edge chipping, separate the material from the metal laser bed. Do not lay the plastic directly on the honeycomb grid. Instead, use metal stand-offs, specialized pin tables, or even small scrap pieces of acrylic to elevate the material by at least half an inch. By suspending the material in the air, the laser beam passes cleanly through the bottom, and any reflections from the metal bed dissipate before they can reach your workpiece.
The fabrication industry is currently experiencing a massive shift toward automation and first-pass perfection. With the rapid adoption of high-speed industrial CO2 lasers, the tolerance for edge defects has plummeted. Market analysis shows a growing demand for premium architectural signage, retail point-of-purchase displays, and high-end awards. This demand forces shop owners to rethink their raw material sourcing strategies.
Historically, fabricators might have accepted minor chipping and hidden it with frames or heavy post-processing. Today, the labor costs associated with manual sanding, polishing, and scrapping defective parts far outweigh the initial savings of buying budget plastics. Consequently, there is an industry-wide movement toward standardizing high-grade Clear Acrylic Sheet substrates. By utilizing thermally stable materials, fabricators achieve pristine edges directly off the laser bed, drastically improving turnaround times and profit margins.
When operating a CNC laser, it is easy to focus entirely on machine settings. However, the condition of the material's surface covering, known as masking, plays a surprisingly critical role in the final quality of the cut.
Masking generally comes in two primary forms: paper-based tape and polyethylene plastic film. The material composition of this masking dictates its behavior under intense thermal stress. Plastic film masking is highly problematic for laser applications. When the beam hits a plastic-masked surface, the intense heat causes the film to melt rather than vaporize. This molten plastic flows into the freshly cut kerf and fuses with the warm acrylic edge.
As the material cools, the plastic masking hardens into a rigid, jagged burr. When an operator attempts to peel this fused plastic away, the rigid burr snaps off, pulling microscopic fragments of the acrylic with it and resulting in a severely chipped edge. In addition, paper masking is the undisputed industry standard. High-quality paper tape utilizes a specialized latex-based adhesive that withstands localized heat. Instead of melting, the paper vaporizes cleanly. It also acts as a thermal barrier against shock and absorbs vaporized resins that would otherwise settle as a hazy smoke residue.
Even with perfectly calibrated settings, optimal focal length, and the correct paper masking, edge chipping will still occur if the base material is fundamentally flawed. In the realm of laser processing, material composition is the ultimate variable.
The market is saturated with low-grade, bargain plastics marketed as laser-ready. However, these low-cost options are frequently manufactured using recycled fillers or mixed polymer blends to reduce production overhead. While they may look acceptable to the naked eye, their internal molecular structure is highly inconsistent. When a laser beam passes through a material with varying densities or chemical impurities, the vaporization rate fluctuates wildly. This inconsistency causes localized spikes and drops in temperature along the cut line, leading to internal thermal stress. As the material cools, these stressed areas fracture.

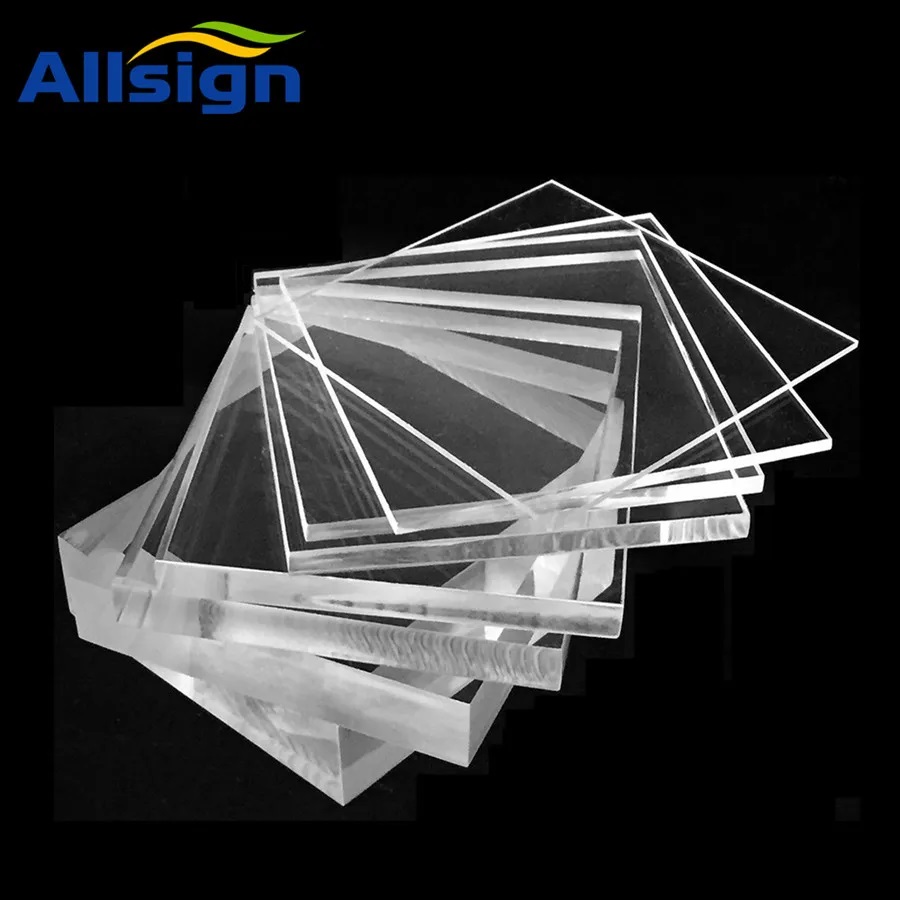

To eliminate these frustrating variables, upgrading to a tightly controlled, premium substrate is essential. When you integrate an Allsign clear acrylic sheet into your workflow, you are investing in superior thermal stability and exceptional optical clarity. Premium materials are manufactured using 100% virgin raw materials, boasting a light transmittance of over 92%. This ensures a uniform molecular structure that reacts predictably to thermal vaporization.
Specifically, the absence of impurities means there are no foreign particles to cause localized burning, micro-explosions, or thermal crazing. Furthermore, strict thickness tolerances guarantee your laser's focal length remains perfectly optimized throughout the entire job. This minimizes wasted inventory and ensures a smooth, chip-free edge every single time.
The risk of edge degradation does not end the moment the laser stops firing. The post-processing phase is a critical window where many operators inadvertently ruin their perfectly cut parts.
When the job finishes, the edges of your design are still undergoing a phase change from a semi-liquid state back to a solid. The material is hovering near its glass transition temperature. If you immediately grab the piece and forcefully pop it out of the skeleton sheet, the mechanical bending will cause the warm, vulnerable edges to fracture. Always practice patience. Allow the material to rest in the laser bed for one to two minutes, letting it cool naturally to room temperature before applying any physical pressure.
Cleaning is where most post-processing disasters occur. Freshly laser-cut edges contain invisible, residual thermal stress. If you apply aggressive chemicals to these stressed edges, the plastic will undergo immediate chemical crazing. You will hear a faint crackling sound, followed instantly by a rapid network of deep cracks and chips that ruins the piece. Never use alcohol-based cleaners, ammonia-based glass cleaners, or acetone on laser-cut edges. Instead, use only a soft microfiber cloth with mild soap and warm water.
Chipping along a laser-cut edge is rarely a physical break. It is the visual symptom of thermal shock, incorrect machine calibration, or poor material quality. To achieve that coveted glass-like finish, always lower your air assist to a gentle breeze during cutting, double-check your laser focus before starting jobs, and elevate your material to prevent flashback.
Most importantly, ensure you are using high-quality cast materials designed specifically for thermal processing. Stop fighting with low-grade plastics that waste your time, damage your tooling, and hurt your brand's reputation. By investing in premium, precisely engineered sheets from a trusted manufacturer like Allsign, you will lock in flawless, professional, chip-free results straight out of the machine on every single production run.
Yes, cutting 1/4 inch material without chipping is entirely achievable. Thicker sheets simply require a specific approach: you must significantly lower your cutting speed and increase the laser power to ensure the beam penetrates completely without hesitation. Furthermore, a perfectly focused lens is non-negotiable for thicker materials to prevent a slanted edge. Elevating the sheet off the honeycomb bed using stand-offs will prevent flashback and ensure a clean result.
This delayed fracturing is a phenomenon known as crazing. It occurs when the internal thermal stress generated by the laser cutting process reacts with incompatible environmental factors or chemicals. If you apply alcohol-based adhesives, harsh cleaning solvents, or even expose the stressed edge to certain chemical vapors days after cutting, the polymer chains will violently separate. To prevent this, only use mild soap for cleaning and adhesives specifically formulated for acrylic fabrication.
Masking tape does not physically hold the edge together to stop mechanical chipping, but it plays a vital role in thermal protection. High-quality paper masking protects the surface from smoke residue, burn marks, and localized thermal shock. More importantly, using paper masking is vastly superior to plastic film masking. Plastic film melts into the cut edge under the laser's heat, creating a hard, jagged burr that causes severe edge chipping when peeled away.
Cast acrylic is vastly superior for laser cutting applications. Due to its manufacturing process, cast acrylic has a uniform molecular structure with almost zero internal tension, allowing it to vaporize cleanly under a CO2 laser. This leaves a smooth, polished edge that resists chipping. Extruded acrylic holds immense internal tension from being pushed through rollers. When cut, that tension is released, causing the plastic to melt, gum up, and become highly susceptible to stress-cracking.
To prevent excessive melting and gumming, you must optimize your speed-to-power ratio and ensure you are using cast material rather than extruded. If your laser moves too slowly with high power, excess heat builds up in the melt pool, causing the surrounding plastic to warp and boil. Increase your cutting speed slightly while maintaining enough power to pierce through the material entirely. Additionally, ensure your exhaust fan is pulling hot vapors away from the cut line efficiently.
The ideal setup involves a CO2 laser rather than a diode or fiber laser, as the 10,600nm wavelength of a CO2 tube is perfectly absorbed by clear plastics. Equip your machine with a 2.0-inch or 2.5-inch focal lens for standard thicknesses to maintain a straight kerf. Set your air assist to a very low pressure just enough to protect the lens, elevate the material off the metal bed using pin stands, and maximize your frequency settings for a continuous, polished edge.
